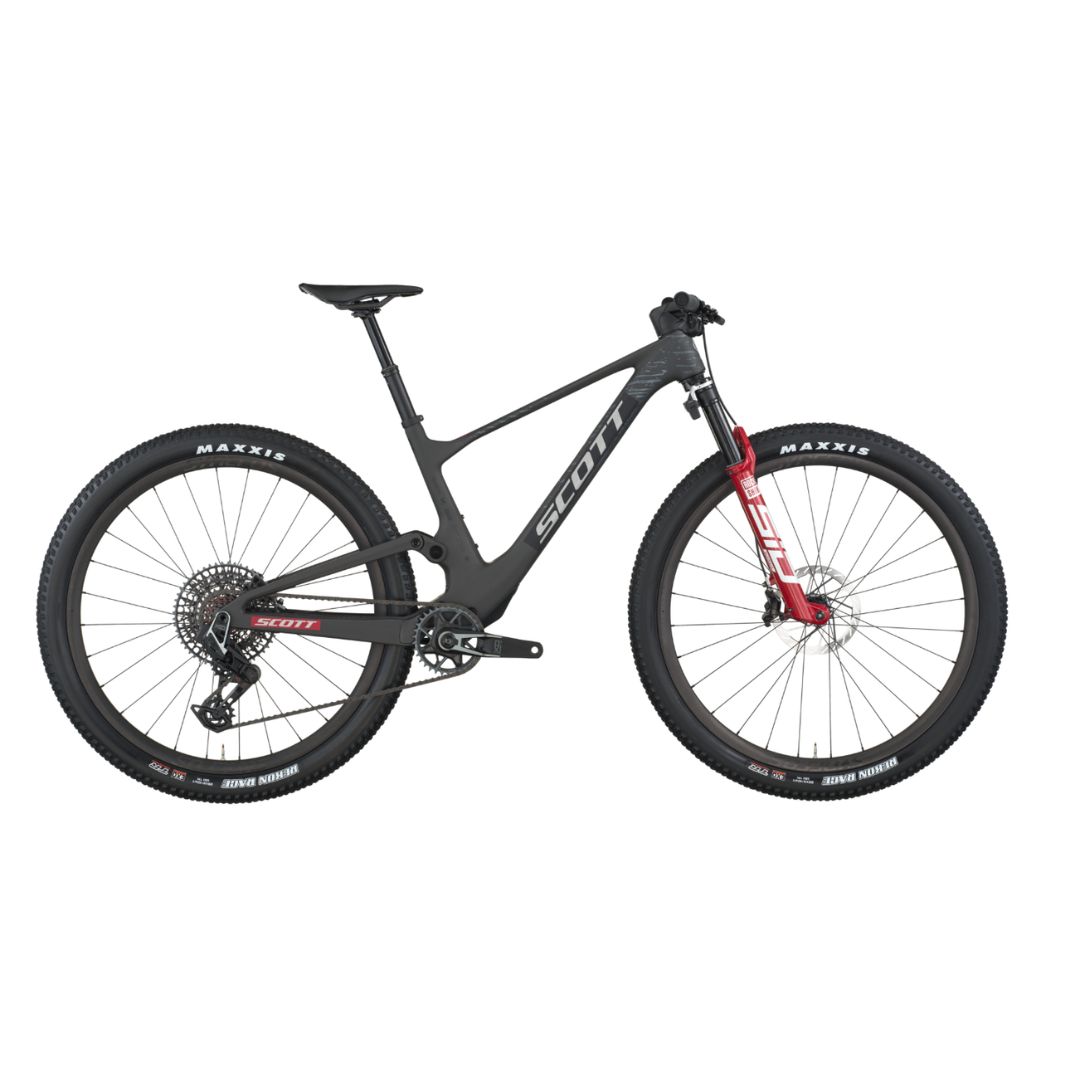

BICICLETA SCOTT SPARK RC WORLD CUP (TW)
- La Spark RC World Cup es la mezcla perfecta de ingeniería de vanguardia en carbono, unos niveles de integración nunca vistos hasta ahora y la cantidad exacta de nuestra salsa secreta. Queríamos que esta bicicleta fuera más veloz tanto en los ascensos como en los descensos. Hemos alargado el recorrido de la suspensión, hemos perfeccionado la geometría y hemos hecho caso a los mejores deportistas del mundo para crear la bicicleta de carreras de cross country definitiva. Si te apasiona la velocidad, esta montura te va a encantar.Importante: las especificaciones técnicas de la bicicleta están sujetas a cambios sin previo aviso.
CARACTERÍSTICAS PRINCIPALES
- Horquilla RockShox SID Ultimate Flight Attendant 120mm
- RockShox SIDLuxe Ultimate Flight Attendant Custom 120mm
- Transmisión SRAM X0 AXS, Potencímetro
- Frenos de disco de 4 pistones SRAM Level
- Ruedas de carbono Syncros Silverton 1.0
- Cubiertas Maxxis Rekon Race Foldable
- Tija ajustable SYNCROS, Componentes SYNCROS CF
-
CUADRO
Spark RC Carbon HMF
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline -
HORQUILLA
RockShox SID Ultimate Flight Attendant
Electronically controlled Suspension
FA Race Day damper 3 Modes
15x110mm Maxle Stealth / 44mm offset /Tapered steerer
Lockout / Reb. Adj. / 120mm travel -
AMORTIGUADOR TRASERO
RockShox SIDLuxe Ultimate Flight Attendant Custom
Electronically controlled Suspension
3 Modes Lockout-Pedal-Descend
Solo Air / Reb. Adj./ Lockout / Travel 120mm / T165X45mm -
SISTEMA REMOTO
Automatic electrionic suspension system,that listens to the rider and responds in real-time
-
DESVIADOR TRASERO
SRAM X0 Eagle AXS Transmission 12 Speed
Wireless Electronic Shift System -
PALANCAS DE CAMBIO
SRAM AXS Rocker Pod Controller -
BIELAS
SRAM X0 Eagle Transmission
Spindle Power Meter / DUB / 55mm CL / 34T -
GUIACADENAS
SCOTT custom -
PEDALIER
SRAM DUB PF 92 MTB Wide / shell 41x92mm -
CADENA
SRAM CN X0 Eagle Transmission -
CASSETTE
SRAM X0 Eagle XS 1295 Transmission 10-52 -
FRENOS
SRAM Level Silver Stealth 4-Piston Disc -
DISCO DE FRENO
SRAM HS2 Rotors 180/F and 160/R -
MANILLAR
Syncros Fraser iC SL XC Carbon
-12° rise / back sweep 8° / 740mm
Syncros Performance XC lock-on grips -
TIJA DE SILLÍN
Syncros Duncan Dropper Post 1.5XC / 31.6mm
all sizes 100mm -
SILLÍN
Syncros Belcarra Regular 1.5
Titanium rails -
JUEGO DE DIRECCIÓN
Syncros – Acros Angle adjust & Cable Routing HS System
Stainless
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB -
JUEGO DE RUEDAS
Syncros Silverton 1.0-30 6 Bolt
F: 15x110mm
R: 12x148mm
30mm Tubeless ready Carbon rim 28H
DT Swiss Ratchet Hubs / XD Driver
SRAM TyreWiz ready / Syncros SL Axle w/Removable Lever
with 6mm Allen
T30 and T25 Tools -
NEUMÁTICO DELANTERO
Maxxis Rekon Race / 29×2.4″ / 120TPI Foldable Bead
Tubeless Ready / EXO -
NEUMÁTICO TRASERO
Maxxis Rekon Race / 29×2.4″ / 120TPI Foldable Bead
Tubeless Ready / EXO -
EXTRAS
SRAM AXS Powerpack
Syncros Tubeless Handlebar Tool -
ACCESORIOS
Syncros Eco Sealant
Transport Axle -
PESO EN KG (APROX.)
11.2 (Tubeless setup) -
PESO EN LBS (APROX.)
24.69 (Tubeless setup) -
PESO TOTAL (MÁXIMO)
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
S | M | L | XL | ||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | HEAD TUBE ANGLE | 67.2 ° | 67.2 ° | 67.2 ° | 67.2 ° | ||||||||||||||
B | HEAD TUBE LENGTH | 90.0 MM | 90.0 MM | 105.0 MM | 115.0 MM | ||||||||||||||
C | TOP TUBE HORIZONTAL | 562.0 MM | 590.0 MM | 614.0 MM | 642.0 MM | ||||||||||||||
D | STANDOVER HEIGHT | 758.0 MM | 765.0 MM | 776.0 MM | 799.0 MM | ||||||||||||||
E | BB OFFSET | -45.0 MM | -45.0 MM | -45.0 MM | -45.0 MM | ||||||||||||||
F | BB HEIGHT | 330.0 MM | 330.0 MM | 330.0 MM | 330.0 MM | ||||||||||||||
G | WHEEL BASE | 1,129.0 MM | 1,159.0 MM | 1,190.0 MM | 1,231.0 MM | ||||||||||||||
H | BB CENTER TO TOPTUBE CENTER | ||||||||||||||||||
I | BB CENTER TO TOP OF SEATTUBE | 415.0 MM | 440.0 MM | 490.0 MM | 540.0 MM | ||||||||||||||
J | SEAT ANGLE | 75.9 ° | 76.1 ° | 76.6 ° | 76.9 ° | ||||||||||||||
K | CHAINSTAY | 437.5 MM | 437.5 MM | 437.5 MM | 437.5 MM | ||||||||||||||
L | REACH | 411.0 MM | 441.0 MM | 471.0 MM | 501.0 MM | ||||||||||||||
M | STACK | 602.5 MM | 602.5 MM | 616.0 MM | 625.0 MM | ||||||||||||||
N | STEM LENGTH | 50.0 MM | 60.0 MM | 70.0 MM | 80.0 MM | ||||||||||||||
0 | TRAIL | 115.0 MM | 115.0 MM | 115.0 MM | 115.0 MM | ||||||||||||||
P | FORK LENGTH | 530.0 MM | 530.0 MM | 530.0 MM | 530.0 MM | ||||||||||||||
Q | MAXIMUM SEATPOST INSERTION | 150.0 MM | 175.0 MM | 225.0 MM | 275.0 MM | ||||||||||||||
R | CRANK LENGTH | 170.0 MM | 175.0 MM | 175.0 MM | 175.0 MM |
