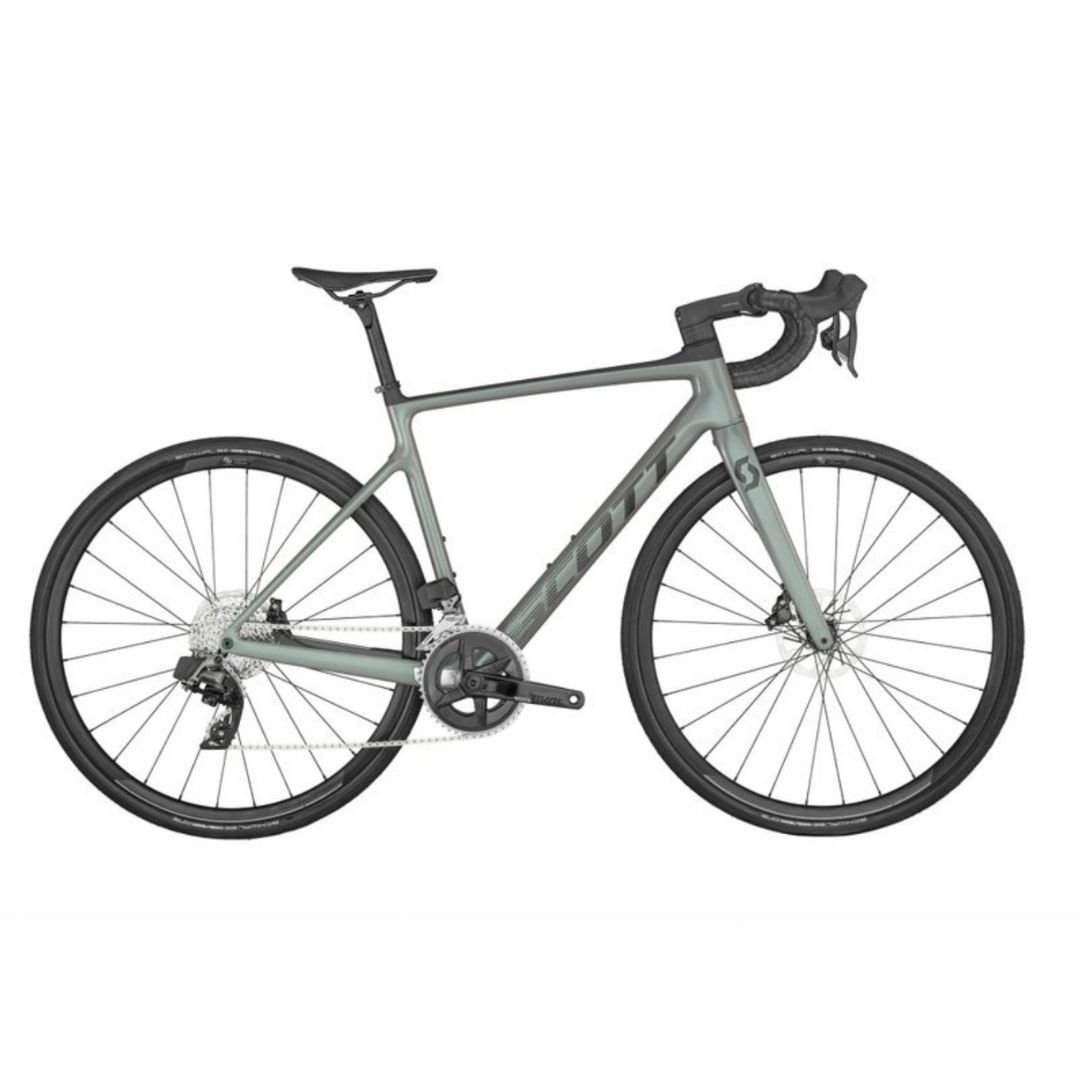

BICICLETA SCOTT ADDICT 10 GREEN
- Hemos cambiado a fondo el diseño de la Addict 10 de SCOTT pensando en los que pasan más horas pedaleando. Con una geometría menos centrada en la competición y más en el fondo, esta bicicleta llega a tus manos con ganas de devorar kilómetros contigo.
-
Cuadro
Addict Disc HMF Carbon
Endurance geometry / Replaceable Derailleur Hanger
Internal cable routing
Syncros fender kit ready -
Horquilla
Addict HMF Disc
1 1/4″-1 1/2″ Excentric Carbon steerer -
Desviador trasero
SRAM RIVAL eTap AXS
24 Speed Electronic Shift System -
Desviador delantero
SRAM RIVAL eTap AXS
Electronic Shift System
-
Palancas de cambio
SRAM RIVAL eTap AXS HRD Shift-Brake System -
Bielas
SRAM RIVAL Crankset
46/33 T -
Pedalier
SRAM DUB PF ROAD 86.5 -
Cadena
SRAM RIVAL -
Cassette
SRAM RIVAL XG1250
10-36 -
Frenos
SRAM RIVAL eTap AXS HRD Shift-Brake System -
Disco de freno
SRAM Paceline rotor 160/F and 160/R -
Manillar
Syncros Creston 2.0 Compact
Alloy 31.8mm -
Potencia
Syncros RR2.0
1 1/4″ / four Bolt 31.8mm -
Tija de sillín
Syncros Duncan 1.0
27.2/350mm -
Sillín
Syncros Tofino Regular 2.0 Channel -
Juego de dirección
Acros AIF-1134 -
Juego de ruedas
Syncros RP2.0 Disc
28 Front / 28 Rear
Syncros Axle / Removable Lever with Tool -
Neumático delantero
Schwalbe ONE Fold
700x32C -
Neumático trasero
Schwalbe ONE Fold
700x32C -
Peso en kg (aprox.)
8.7 -
Peso en Lbs (aprox.)
19.18 -
Peso total (máximo)
120kg
| XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HEAD TUBE ANGLE | 70.5 ° | 71.0 ° | 72.0 ° | 72.5 ° | 73.0 ° | 73.3 ° | 73.3 ° | |||||||||
| B | HEAD TUBE LENGTH | 95.0 MM | 105.0 MM | 125.0 MM | 145.0 MM | 165.0 MM | 185.0 MM | 205.0 MM | |||||||||
| C | TOP TUBE HORIZONTAL | 515.0 MM | 525.0 MM | 540.0 MM | 555.0 MM | 570.0 MM | 585.0 MM | 600.0 MM | |||||||||
| D | STANDOVER HEIGHT | 732.0 MM | 747.0 MM | 775.0 MM | 790.0 MM | 812.0 MM | 835.0 MM | 848.0 MM | |||||||||
| E | BB OFFSET | -70.0 MM | -70.0 MM | -70.0 MM | -70.0 MM | -70.0 MM | -70.0 MM | -70.0 MM | |||||||||
| F | BB HEIGHT | 275.3 MM | 275.3 MM | 275.3 MM | 275.3 MM | 275.3 MM | 275.3 MM | 275.3 MM | |||||||||
| G | WHEEL BASE | 996.7 MM | 1,003.0 MM | 1,005.0 MM | 1,010.6 MM | 1,015.4 MM | 1,022.8 MM | 1,036.5 MM | |||||||||
| H | BB CENTER TO TOPTUBE CENTER | 415.0 MM | 435.0 MM | 465.0 MM | 485.0 MM | 505.0 MM | 525.0 MM | 540.0 MM | |||||||||
| I | BB CENTER TO TOP OF SEATTUBE | 455.0 MM | 475.0 MM | 505.0 MM | 525.0 MM | 545.0 MM | 565.0 MM | 580.0 MM | |||||||||
| J | SEAT ANGLE | 75.0 ° | 75.0 ° | 74.5 ° | 74.0 ° | 73.5 ° | 73.1 ° | 73.0 ° | |||||||||
| K | CHAINSTAY | 420.0 MM | 420.0 MM | 420.0 MM | 420.0 MM | 420.0 MM | 420.0 MM | 420.0 MM | |||||||||
| L | REACH | 376.3 MM | 383.2 MM | 387.0 MM | 390.9 MM | 394.3 MM | 398.6 MM | 406.6 MM | |||||||||
| M | STACK | 517.8 MM | 529.1 MM | 551.6 MM | 572.4 MM | 593.3 MM | 613.6 MM | 632.7 MM | |||||||||
| N | STEM LENGTH | 83.0 MM | 93.0 MM | 103.0 MM | 113.0 MM | 113.0 MM | 123.0 MM | 123.0 MM | |||||||||
