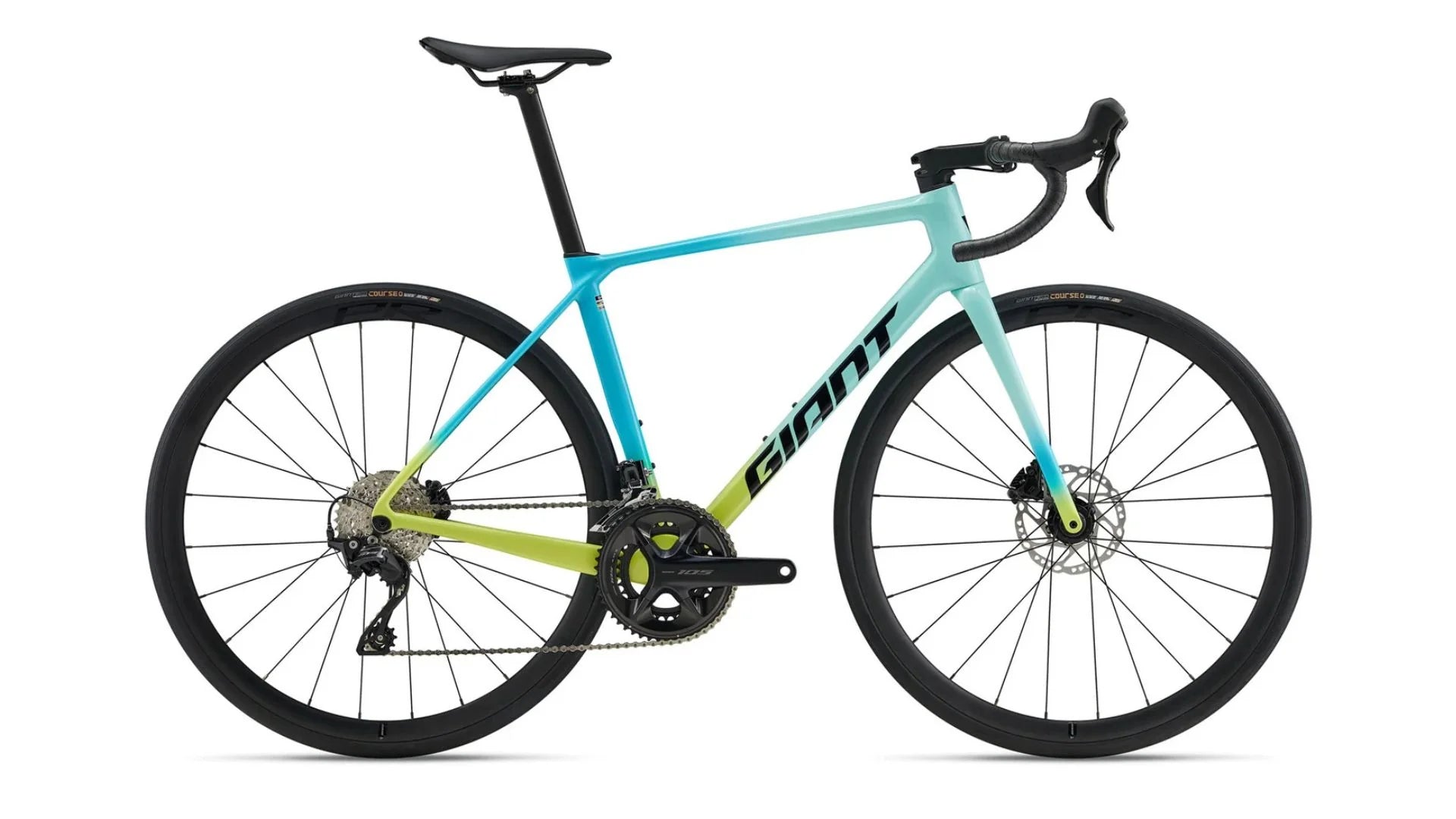

DISEÑADA PARA IR MÁS RÁPIDO. YA SEA QUE ESTÉS SUBIENDO, TOMANDO CURVAS O LANZANDO UN ATAQUE, ESTE NUEVO CORREDOR DE CARRETERA DE COMPUESTO ESTÁ HECHO PARA ESE MOMENTO. LIGERO, EFICIENTE E INTEGRADO PARA LA VELOCIDAD, ESTÁ DISEÑADO PARA DARTE UNA VENTAJA COMPETITIVA EN CADA SITUACIÓN.
OPTIMIZACIÓN DEL SISTEMA
El conjunto de cuadro, las ruedas, el cockpit y otras partes fueron diseñados, desarrollados y probados juntos para funcionar como un sistema. El nuevo avance Contact AeroLight permite el enrutamiento de cables que integra la tapa superior, los cables y los espaciadores en una configuración más aerodinámica y fácil de usar.
MEJOR EFICIENCIA
Con una relación rigidez-peso mayor que la generación anterior, junto con una nueva forma de tubo aerodinámico y un peso total más ligero, esta bicicleta de carrera implacable ofrece una aceleración explosiva y una rigidez en el pedaleo sin concesiones. El resultado es un rendimiento ganador en las situaciones que cuentan.
AEREODINÁMICA INTEGRADA
Todas las formas de tubo fueron diseñadas y desarrolladas utilizando modelado de Dinámica de Fluidos Computacional (CFD) y pruebas en túnel de viento. Desde la forma de elipse truncada de los tubos del conjunto de cuadro hasta un nuevo diseño de cockpit e integración de componentes, todo se suma a un perfil más aerodinámico que mejora el rendimiento aerodinámico general en comparación con la generación anterior.
AHORA MÁS RÁPIDA
Los componentes recién integrados, incluido el avance Contact AeroLight, crean un perfil más aerodinámico y elegante. El tija de sillín Variant agrega justo la cantidad suficiente de flexibilidad para una sensación equilibrada y ajustada a la carrera en la carretera, mientras que el amplio espacio para neumáticos (hasta 33 mm) y las ruedas flexibles te mantienen rodando con velocidad en carreteras lisas o con baches.
ADVANCED COMPOSITE
High-performance grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
TRUNCATED ELLIPSE TUBING
Strategically engineered airfoil sections in the frame and fork, developed through CFD and wind-tunnel testing, improve aerodynamic efficiency, reducing wind drag at a wide range of yaw angles compared to traditional teardrop shaped tubes.
INTERNAL CABLE ROUTING
Frame/handlebar/stem feature unique cable porting for sleek, non-cluttered appearance and easier adjustability.
COMPOSITE FORK
Advanced-grade composite fork features a symmetric design and aero shaping, along with disc-brake integration and increased clearance for tires up to 33mm. The design makes it lighter, stiffer and more aerodynamic.
AERODYNAMIC HANDLEBAR AND STEM
Lightweight handlebar and stem feature aero shaping including flat handlebar tops with raised edges to help riders maintain a stable aero position. Internal cable routing further improves aerodynamics while maintaining ease of setup and adjustment.
VARIANT SEATPOST
This proprietary seatpost design offers the perfect balance of light weight, aerodynamic performance and compliance, along with easy saddle installation and adjustment.
MEGADRIVE
An oversized down tube and top tube provide superior front end lateral and torsional stiffness. The precisely engineered, rectangular shaped down tube yields unprecedented steering precision and pedaling performance.
POWERCORE
The oversized bottom bracket area features a fully integrated 86mm wide design. Symmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
DISC-BRAKE INTEGRATION
The frame and fork are engineered with flat-mount disc-brake technology for powerful, consistent braking performance in all conditions.
Techs & Features
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
-
- XS
- 157 cm5’2” 169 cm5’7”
-
- S
- 165 cm5’5” 175 cm5’9”
-
- M
- 171 cm5’7” 181 cm5’11”
-
- ML
- 177 cm5’10” 187 cm6’2”
-
- L
- 183 cm6’0” 193 cm6’4”
-
- XL
- 189 cm6’2” 199 cm6’6”
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 42516.7 | 44517.5 | 47018.5 | 50019.7 | 53020.9 | 56022 |
| B | Seat Tube Angle (degrees) | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C | Top Tube Length (mm) (inch) | 52020.5 | 53521.1 | 55021.7 | 56522.2 | 58022.8 | 60023.6 |
| D | Head Tube Length (mm) (inch) | 1204.7 | 1305.1 | 1455.7 | 1656.5 | 1857.3 | 2007.9 |
| E | Head Tube Angle (degrees) | 71.0° | 72.3° | 73.5° | 73.0° | 73.0° | 72.5° |
| F | Fork Rake (mm) (inch) | 451.8 | 451.8 | 451.8 | 451.8 | 451.8 | 451.8 |
| G | Trail (mm) (inch) | 722.8 | 642.5 | 592.3 | 592.3 | 592.3 | 592.3 |
| H | Wheelbase (mm) (inch) | 97638.4 | 97738.5 | 98038.6 | 99139 | 100639.6 | 102040.2 |
| I | Chain Stay Length (mm) (inch) | 40515.9 | 40515.9 | 40515.9 | 40515.9 | 40515.9 | 40515.9 |
| J | Bottom Bracket Drop (mm) (inch) | 722.8 | 69.52.7 | 69.52.7 | 672.6 | 672.6 | 672.6 |
| K | Stack (mm) (inch) | 51720.4 | 52820.8 | 54521.5 | 56222.1 | 58122.9 | 59623.5 |
| L | Reach (mm) (inch) | 37614.8 | 38315.1 | 38815.3 | 39315.5 | 40215.8 | 41216.2 |
| M | Stand Over Height (mm) (inch) | 70327.7 | 72228.4 | 74329.3 | 77130.4 | 79831.4 | 82232.4 |
| N | Handlebar Width (mm) (inch) | 40015.7 | 40015.7 | 42016.5 | 42016.5 | 44017.3 | 44017.3 |
| O | Stem Length (mm) (inch) | 803.1 | 903.5 | 1003.9 | 1104.3 | 1104.3 | 1204.7 |
| P | Crank Length (mm) (inch) | 1706.7 | 1706.7 | 172.56.8 | 172.56.8 | 1756.9 | 1756.9 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
-
SizesXS, S, M, M/L, L, XL
-
ColoursCarbon
-
FrameAdvanced-Grade Composite, 12x142mm thru-axle, disc
-
ForkAdvanced-Grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
-
HandlebarGiant Contact
-
GripsStratus Lite 2.0
-
StemGiant Contact AeroLight
-
SeatpostGiant Variant, composite, -5/+15mm offset
-
SaddleGiant Approach
-
PedalsN/A
-
ShiftersShimano 105
-
Front DerailleurShimano 105
-
Rear DerailleurShimano 105
-
BrakesShimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
-
Brake LeversShimano 105
-
CassetteShimano 105, 12-speed, 11×36
-
ChainKMC X12L-1
-
CranksetShimano 105, 34/50 XS, S:170mm, M, M/L:172.5mm, L, XL:175mm
-
Bottom BracketShimano RS500, press fit
-
RimsGiant P-R2 alloy Disc wheelset
-
Hubs12mm thru-axle
-
SpokesSapim stainless
-
TiresGiant Gavia Course 1, tubeless, 700x25c (28mm), 60 TPI, folding
-
Extrastubeless prepared, 33mm max tire size
-
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
All prices and specifications are subject to change without notice.
